Laser Cutting

Laser Cutting

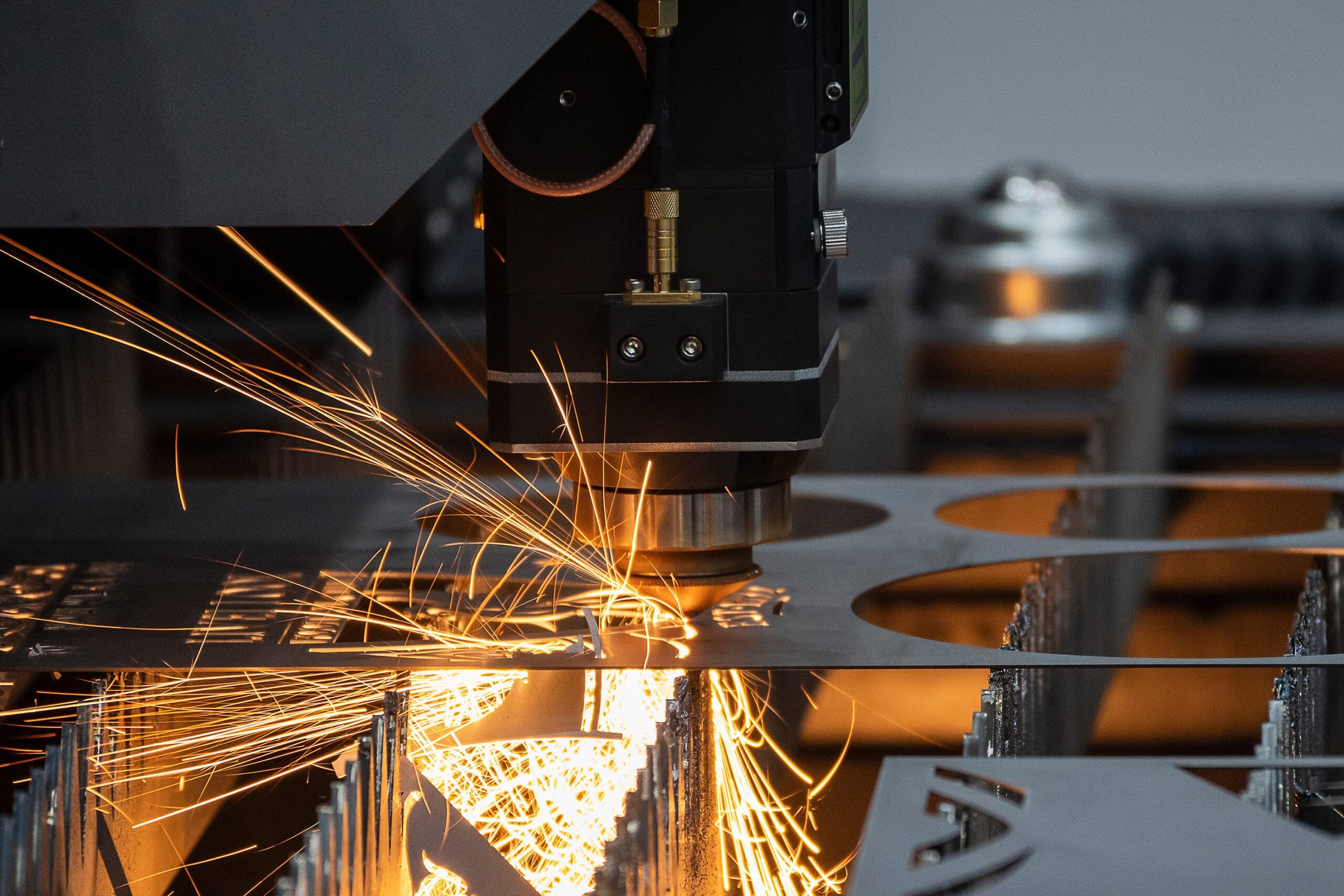

This section provides an overview of the cutting-edge laser systems used for precise cutting of metal sheets and tubes. Our laser technology includes CO2 and Fiber lasers, capable of handling a variety of materials such as steel, stainless steel (SS), aluminum, copper, and brass with varying thicknesses and dimensions.

Laser Cutting Systems Specifications

Sheet Laser Systems

LaserFibre/CO2WattTable Size Width (ft)Table Size Length (ft)Steel Max Thickness (in)SS Max Thickness (in)Alum Max Thickness (in)Copper & Brass (in)Comments
CO260006′ 9″13′¾”¾”½”0.315″Dual Pallet
Fibre60006′ 8″13′1″1″1″0.315″Dual Pallet
Fibre60005′10′0.984″1″0.787″0.315Automated system: Loading, cutting, sorting, unloading

Tube Laser Systems

LaserFibre/CO2WattMaterial ShapeMax Length (ft)Min Length (in)Max OD (in)Min OD (in)ToleranceComments
Fibre2KWSquare13N/A4″ x 4″0.5″ x 0.5″0.01Load Length = 21′
Rectangular13N/A5″ x 3″0.4″ – 0.5″0.01
Machinable Bar Length21′ load10.5′ load5″0.5″0.01
Round13N/A4 5/8″4 5/8″0.01

System Features and Benefits

$

CO2 Lasers

Suitable for cutting thicker materials like steel and stainless steel. Dual pallet capability allows for increased productivity by minimizing downtime during loading and unloading.

$

Fiber Lasers

High efficiency, ideal for cutting reflective materials such as aluminum, copper, and brass. Fiber technology offers superior cutting speeds and precision for thinner materials.

$

Automated Systems

Our automated system features an integrated loading and unloading system, reducing human intervention and enhancing efficiency for large batch productions.
$

Tube Lasers

Specializes in cutting a variety of shapes (square, rectangular, round) with precise tolerances, ideal for applications like structural components and automotive industries.
